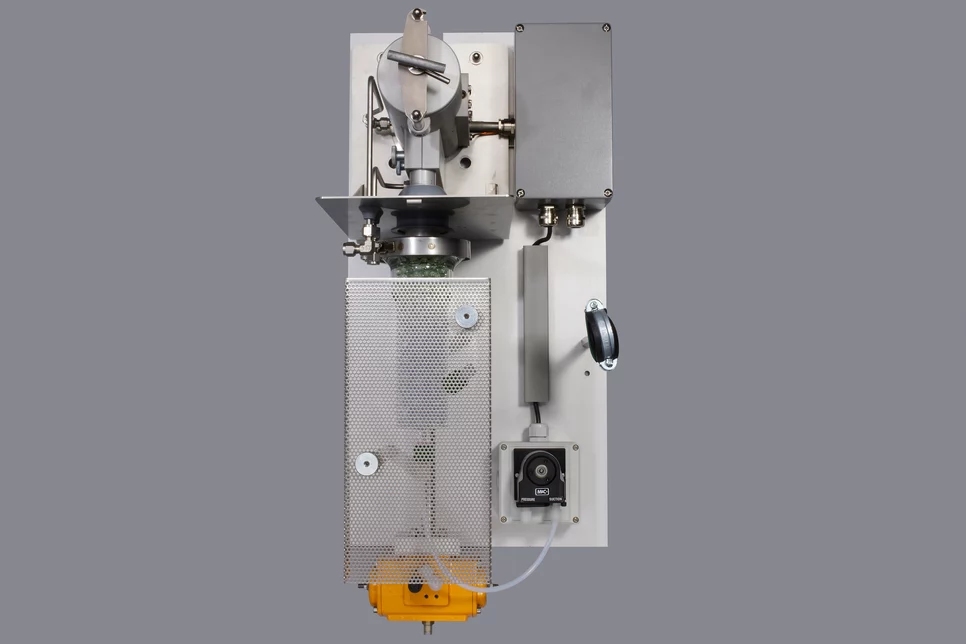

Gas Sample Probe SP2000-H320/S

 Sample probe type SP2000-H320/S with external ceramic filter type S-2K150, filter porosity: 2 µm, filter element seal and cover seal out of graphite, external filter electrically heated from 0 to 320 °C, adjustable by an integrated thermostat, high-temperature limiter with reset key responding at +30 °C above Tset and low-temperature alarm with potential-free status alarm contact  at-30°C below Tset, incl. weather protection shield with insulation, mounting flange: DN 65 PN 6B with G 3/4" f connection, incl. flange gasket and screws, pre-separator out of glass/Hastelloy with peristaltic pump SR25.1, mounted on a mounting plate out of aluminium, material: SS 316Ti, ceramics, graphite, glass, PVDF, PTFE, Hastelloy®, calibration gas connection: 6 mm tube with plug, sample outlet: GL 18-8 with PVDF connector for tube DN 4/6, power: 230 V/50 Hz, 800 W.

Product features

  • Special probe for gas sampling downstream of DeNOx plants (SCR)
  • Including non-heated separating vessel in the gas outlet with glass globe fillings to enlarge the reaction surface
  • No salt formation in the heated filter part
  • With integrated peristaltic pump to remove condensate from the separating vessel • Filter housing and mounting flange can be heated up to max. 320 °C [608 °F]
  • Thermostat controller with high-temperature limiter and low-temperature alarm, thermocouple with external temperature controller optional
  • Including test gas connection
  • With ceramic filter element, other materials available
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel, graphite, ceramic, Hastelloy®, glass, FKM, PTFE, PVDF • Optionally: heating for separating vessel, 2- or 3-way ball valve, check valve for test gas inlet, sample tube, pre-filter, protective housing (FRP)
